LLI-N4.4W-20-SX49-RGB

LLI-N4.4W-20-SX49-RGB
LLI-N4.4W-20-SX49-RGB - Image 2

FEATURES & BENEFITS

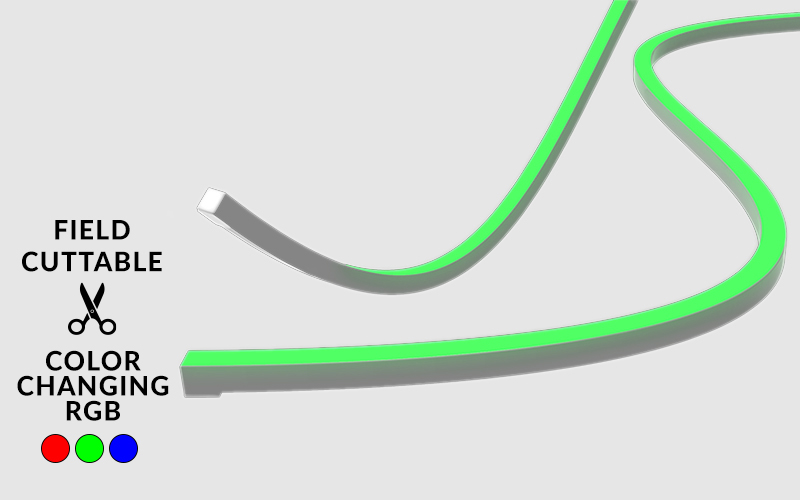

4.4W/ft surface mount, field-cuttable, mini square profile LED Neon. Recommended applications: Outdoor/Indoor accent lighting, retail signage.

TECHNICAL INFORMATION

WATTAGE4.4 W/ft
IP RATINGIP20
BEND ORIENTATIONTop bending or Side bending
HOUSING MATERIALSilicone
LUMEN OUTPUTRGB – 109 lm/ft
INPUT VOLTAGE24VDC
SEGMENT LENGTH1.97″ field-cuttable
MAXIMUM LENGTH16ft
MINIMUM BEND2.32″ diameter
CERTIFICATIONSRoHS, UL, Declare

DOWNLOADS

Specification Sheet – Side BendingSpecification Sheet – Side Bending
Specification Sheet – Top BendingSpecification Sheet – Top Bending
Installation InstructionsInstallation Instructions
Sustainability – Declare LabelSustainability – Declare Label
