FEATURES & BENEFITS

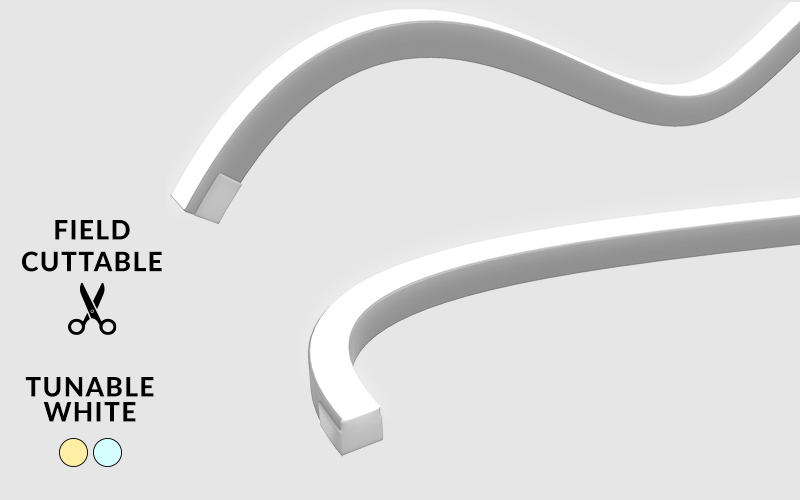

4.4W/ft surface mount, field-cuttable, square profile LED Neon. Recommended applications: Outdoor/Indoor accent lighting, retail signage.

TECHNICAL INFORMATION

WATTAGE4.4 W/ft
IP RATINGIP20
BEND ORIENTATIONSide bending or Top bending
HOUSING MATERIALSilicone
LUMEN OUTPUTSide bending:
191 lm/ft,
201 lm/ft

Top bending:
273 lm/ft,
287 lm/ft
COLOR TEMPERATURE1800-3500K adjustable,
2700-5200K adjustable
INPUT VOLTAGE24VDC
CRI80+
SEGMENT LENGTH2.46″ (side bending), field-cuttable
1.97″ (top bending), field-cuttable
MAXIMUM LENGTH32ft
MINIMUM BEND4.2″ diameter
CERTIFICATIONSRoHS, UL, Declare

DOWNLOADS

Specification Sheet – Side BendingSpecification Sheet – Side Bending
Specification Sheet – Top BendingSpecification Sheet – Top Bending
Installation InstructionsInstallation Instructions
Sustainability – Declare LabelSustainability – Declare Label
