LLI-N5.3W-20-SX63-RGB
FEATURES & BENEFITS

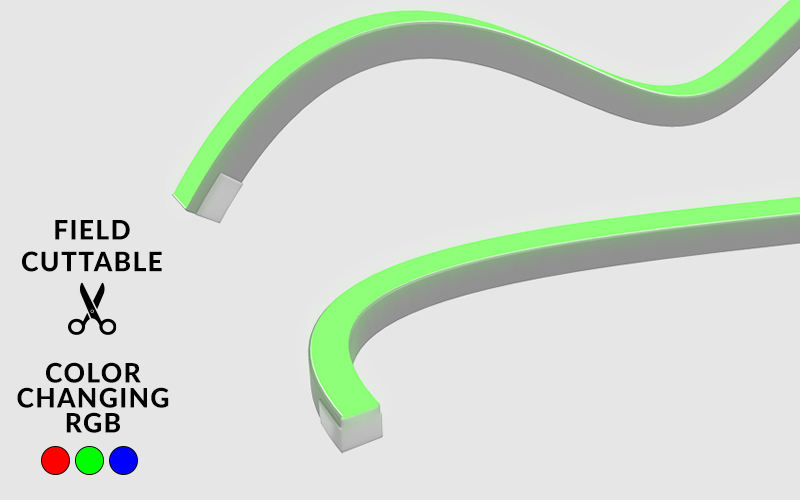

5.3W/ft surface mount, field-cuttable, square profile LED Neon. Recommended applications: Outdoor/Indoor accent lighting, retail signage.
TECHNICAL INFORMATION
| WATTAGE | 5.3 W/ft |
| IP RATING | IP20 |
| BEND ORIENTATION | Side bending or Top bending |
| HOUSING MATERIAL | Silicone |
| LUMEN OUTPUT | 137 lm/ft (side bending) 97 lm/ft (top bending) |
| INPUT VOLTAGE | 24VDC |
| SEGMENT LENGTH | 1.97″ (side bending), field cuttable 3.28″ (top bending), field cuttable |
| MAXIMUM LENGTH | 16ft |
| MINIMUM BEND | 4.72″ diameter |
| CERTIFICATIONS | RoHS, UL, Declare |
