LLI-NH1.4W-68-SXS-RGB
FEATURES & BENEFITS

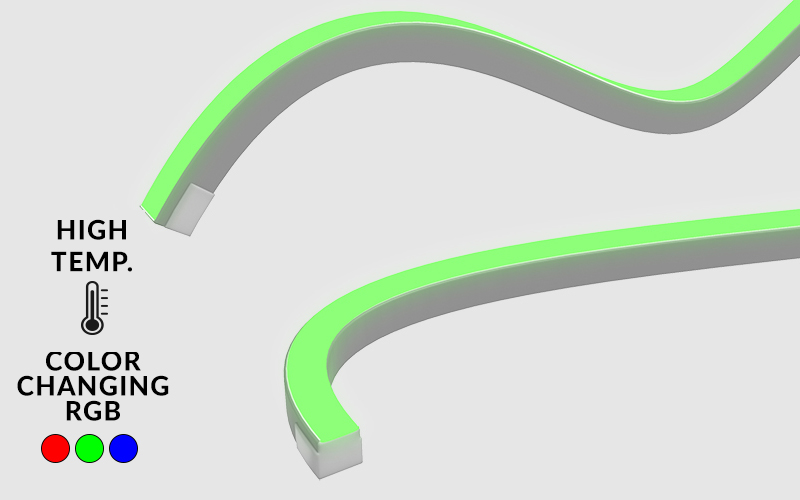

1.4W/ft surface mount, square profile LED Neon. Designed specifically for use in high ambient temperature applications such as wet or dry saunas.
TECHNICAL INFORMATION
| WATTAGE | 1.4 W/ft |
| IP RATING | IP68 |
| BEND ORIENTATION | Side bending, Top bending |
| HOUSING MATERIAL | Silicone |
| LUMEN OUTPUT | 39 lm/ft (side bending) 46 lm/ft (top bending) |
| INPUT VOLTAGE | 24VDC |
| SEGMENT LENGTH | 3.3″, not field-cuttable |
| MAXIMUM LENGTH | 32ft |
| MINIMUM BEND | 12″ diameter |
| CERTIFICATIONS | RoHS, UL, Declare |
