LLI-N3.7W-68-SXS-XXX

LLI-N3.7W-68-SXS-XXX
LLI-N3.7W-68-SXS-XXX - Image 2

FEATURES & BENEFITS

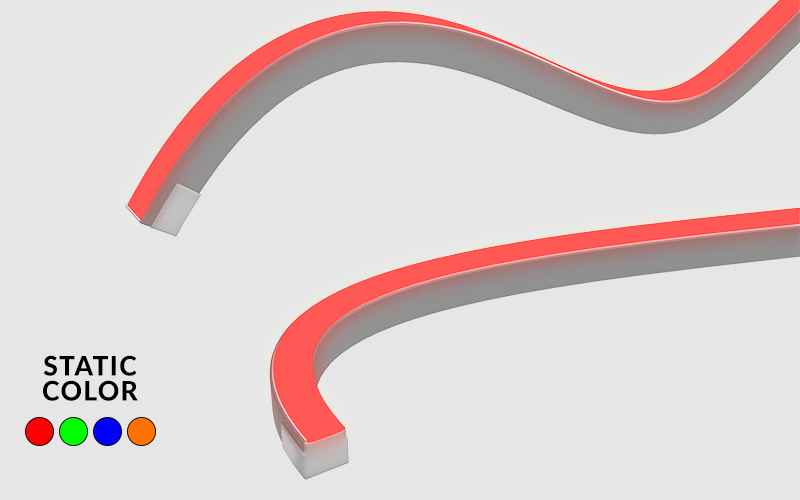

3.7W/ft surface mount, square profile LED Neon. Recommended applications: Outdoor/Indoor accent lighting, retail signage.

TECHNICAL INFORMATION

WATTAGE2.5 W/ft (red/amber)
3.7 W/ft (blue/green)
IP RATINGIP68
BEND ORIENTATIONSide bending, Top bending
HOUSING MATERIALSilicone
LUMEN OUTPUT36-167 lm/ft
INPUT VOLTAGE24VDC
SEGMENT LENGTH2.2″ (blue/green),
3.3″ (red/amber),
not field-cuttable
MAXIMUM LENGTH32ft
MINIMUM BEND12″ diameter
CERTIFICATIONSUL, RoHS, Declare

DOWNLOADS

Specification Sheet – Side Bending, Red/AmberSpecification Sheet – Side Bending, Red/Amber
Specification Sheet – Top Bending, Red/AmberSpecification Sheet – Top Bending, Red/Amber
Specification Sheet – Side Bending, Blue/GreenSpecification Sheet – Side Bending, Blue/Green
Specification Sheet – Top Bending, Blue/GreenSpecification Sheet – Top Bending, Blue/Green
Installation InstructionsInstallation Instructions
IES File – AmberIES File – Amber
IES File – BlueIES File – Blue
IES File – GreenIES File – Green
IES File – RedIES File – Red
Sustainability – Declare LabelSustainability – Declare Label
