LLI-N3.1W-65-XXX-STP-120V
FEATURES & BENEFITS

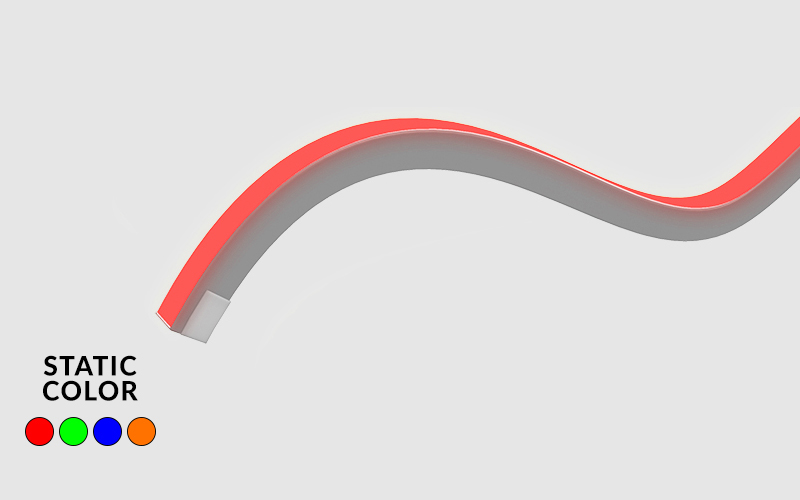

3.1W/ft surface mount, line voltage, square profile LED Neon. Recommended applications: Outdoor/Indoor accent lighting, retail signage.
TECHNICAL INFORMATION
| WATTAGE | 3.1W/ft |
| IP RATING | IP65 |
| BEND ORIENTATION | Top bending |
| HOUSING MATERIAL | PVC |
| OUTPUT | Blue – 27 lm/ft Green – 165 lm/ft Red – 79 lm/ft Amber – 79 lm/ft |
| INPUT VOLTAGE | 120VAC |
| SEGMENT LENGTH | 3.3″ (blue/green), not field-cuttable 4.92″ (red/amber), not field-cuttable |
| MAXIMUM LENGTH | 65ft |
| MINIMUM BEND | 12″ diameter |
| CERTIFICATIONS | ETL |
